26.1MP APS-C X-Trans BSI CMOS 4 Sensor and X-Processor 4
Sharing a sensor with the professional-oriented X-T3, the X-T30 features an APS-C-format 26.1MP X-Trans CMOS 4 sensor, which has a back-illuminated design to afford smooth tonal rendering, improved low-light performance, and a low native ISO 160 setting. As an X-Trans sensor, it utilizes a randomized pixel array, too, which provides a high degree of image quality and sharpness due to the omission of an optical low-pass filter. Versus conventional pixel patterns, the X-Trans design more closely mimics the organic nature of film in order to produce nuanced colors and tonal transitions, while also reducing moiré and aliasing.
The sensor’s design also includes an expanded phase-detection autofocus system, which now has 425 selectable points that cover nearly the entire sensor area. This AF system delivers faster, more accurate focusing performance along with low-light sensitivity down to EV -3. Complementing the imaging and focusing capabilities, an updated X-Processor 4 is also featured, and delivers faster focus response for subject tracking and also supports Face- and Eye-Detection AF when working in AF-C mode and when recording video.
The X-Processor 4 also utilizes four CPU units for faster image processing and it benefits overall performance with faster AF and tracking speeds. Quick continuous shooting is possible, up to 8 fps with a mechanical shutter or 30 fps with an electronic shutter and a 1.25x crop, and internal UHD 4K30 video recording with F-Log is also supported.
UHD and DCI 4K Video Recording
More than a stills camera, the X-T30 offers an enticing array of video capabilities, including internal UHD 4K30 video recording at up to 200 Mb/s—and simultaneous external and internal recording is possible. DCI 4K30 and Full HD 1080p120 recording is also possible, and video files can be saved using either MPEG-4 AVC/H.264 or HEVC/H.265 compressions, and 4K. Greatly benefitting overall video performance, the speed of the quad-CPU X-Processor 4 enables fast read speeds when recording 4K video, which helps to reduce rolling shutter distortion when filming moving subjects.
The X-T30 also includes the F-Log gamma setting, which provides a flat picture for use in advanced color grading software during editing. This maximizes the potential dynamic range in difficult scenes and image adjustments can be made, as well, to highlight tone, shadow tone, color, and sharpness. When working in F-Log, an updated noise reduction algorithm is available along with 4K inter-frame noise reduction, and the minimum sensitivity has been lowered to ISO 640 to suit working in a broader range of scene types.
- A bright and clear means for eye-level viewing, a 2.36m-dot OLED electronic viewfinder offers a 0.62x magnification with a fast refresh rate, wide viewing angle, and adjustable diopter settings. The viewfinder remains blackout free while shooting up to the top 30 fps shooting rate, and a unique Sports Finder Mode can also be employed, which highlights a 16.6MP crop area of the sensor in order to allow you to see outside of the image frame.

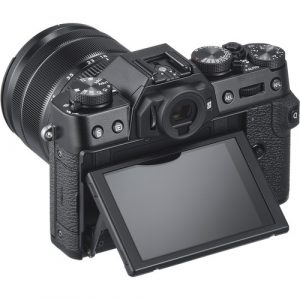

- In addition to the EVF. a rear 3.0″ 1.04m-dot LCD touchscreen is available for intuitive live view shooting, playback and review, and settings adjustment and menu navigation. The screen has a two-way tilting design, too, to suit working from high and low angles regardless if shooting with a horizontal or vertical orientation.

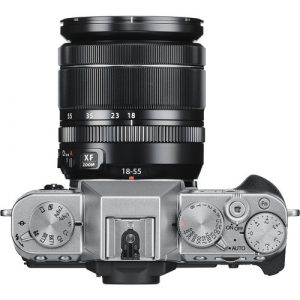

- The top plate incorporates a series of dials and levers for fast, intuitive control over exposure settings, including a shutter speed dial that offers direct shutter speed adjustment, a mode dial, and an exposure compensation dial to choose +/- 3 EV in 1/3 steps, while a command dial position expands the range to +/- 5 EV for further control.
- Front and rear command dials integrate a push function for easier use and settings selection and function buttons can be assigned to control a range of settings.
- A dedicated Focus Lever provides faster, more intuitive control over selecting specific focus points while shooting.
- Integrated Bluetooth 4.2 low energy allows you to wirelessly share images to a mobile device or use the device to remotely control the camera.
