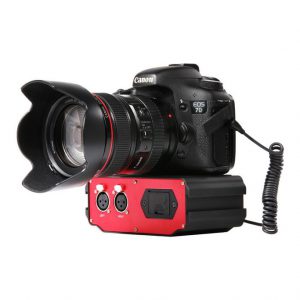

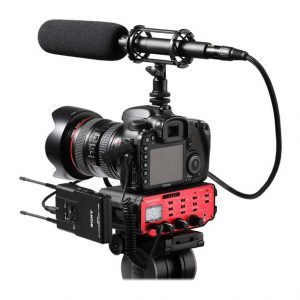

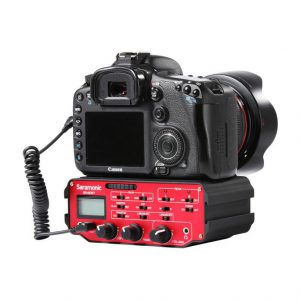

Saramonic SR-AX107 Two-Channel XLR Audio Adapter with Preamplifiers, Phantom Power & Isolation Transformer

Saramonic SR-AX107 Two-Channel XLR Audio Adapter with Preamplifiers, Phantom Power & Isolation Transformer

AED 790.00

Saramonic SR-AX107 – Two-Channel XLR Audio Adapter with Preamplifiers, Phantom Power & Isolation Transformer for DSLR Cameras & Camcorders

Availability: Out of stock Categories: ,

Description

  • The SARAMONIC SR-AX107 is a 2-channel XLR audio adapter with preamplifiers and phantom power, ideal for any DSLR cameras with a built-in microphone jack.
  • Wide-variety of audio devices like professional condenser microphones, wireless microphones, external audio mixers, sound boards and more can be connected to the camera via this adapter. The SR-AX107 makes your recording work much easier.
  • Level Meter allows you to verify the proper input levels in real time, the output signal can be adjusted by the level controls for optimum recording. The phone jack lets you monitor the audio from the adapter during recording, or camera during playback.
  • The AGC disable feature reduces noise during quiet moments of recording by stop using the cameras’ Auto Gain Control function. Low Noise Preamps with Gain Settings Built-in isolation transformer
  • Switchable 12V and 48V Phantom Power Headphone Monitor Output Monitor from PLAY/REC AGC Disable Feature Two Balanced XLR Inputs Mic / Line / Phantom Switchable Mono / Stereo Output Switch Level Meter LED PEAK Indicators

Inputs:

Two balanced XLR inputs
One monitor input jacks

Output:

One stereo 1/8″ (3.5 mm) mini-jack output

Control Knobs:

Left and Right control knobs allows you to adjust the signal of each channel to the optimum recording levels

Volume Control knob adjusts the headphone volume level

M/S Switch:

Select mono or stereo output mode

LINE / MIC/ PH Switches:

Select LINE, MIC or Phantom levels

PH 12V/OFF/48V Switch:

Optional off, 12 or 48 volt phantom power for condenser microphones that require phantom power to operate

Level Meter:

Indicates the sound level in dB for each channel

LED indicators:

The LED signal indicators flash red for overload

Gain Switch:

Selects LOW for unity gain or HIGH for +20dB boost in sound level

MONITOR:

Headphone jack to monitor the audio from microphones or camera

AGC ON/OFF Switch:

Auto Gain Control will increase the gain to maximum level, the AGC Disable function reduces the hiss when the camera is recording during quiet moments

Isolation Transformer:

Provides a completely noise free and pure sound

GND1/GND2:

Dual-mode grounding switch

Dual Headphone Jacks:

Feature isolated volume controls to allow you to monitor the audio from the adapter at the input and output points




Specifications

Input Levels

-3 dBu/ +14 dBu

Output Level

Nominal MIC levels

Frequency Response

20 Hz to 20 kHz (+/- 0.5 dB)

THD

Less than 0.01% @ 1kHz, -30dBu input

S/N Ratio

85 dB @ 1 Khz, -30 dBu input

Gain

0 dB/ 20 dB

Phantom Power

Dual regulated 12 or 48 volt power supplies
Current to 14 mA (direct short)

Level meter

-18 to +3 dB in 3 dB increments

Dimensions

6″x 3.75″x 1.75″(L x W x H)
(152 mm x 95 mm x 44 mm)

Weight

18 oz (0.51 kg)
